The Hive Door Sensor must be reset before it will join another network, this is a short guide on how to achieve this.
Resetting The Door Sensor
To reset the Hive Door sensor, first remove it from it's position or remove it's back. This is easy enough, simply slide the front of the device upwards to detach the rear of the Door sensor's container.
On the Green circuit board there is a small red button, this must be held down. It best to use the tip of your finger or thumb, rather than you nail, as you're less likly to slip off the button, ending the resetting procedure.
When you start to hold the red button down it will cycle through a sequence. First you should see a solid red colour, after 10 seconds or so, the solid red led will turn Green, keep holding the button down after another 10 seconds the solid Green colour will stop and the LED will begin to flash Red / Orange.
When the flashing starts, the device has been reset and will join a ZigBee network that has "Permit Join" enabled.
Join to the Control System
Once reset, the Hive Door sensor can join the control System. Either Before or after resetting the Hive Door Sensor, enable "Permit Join" on the appropriate ZigBee Network.
Discover the Door Sensor

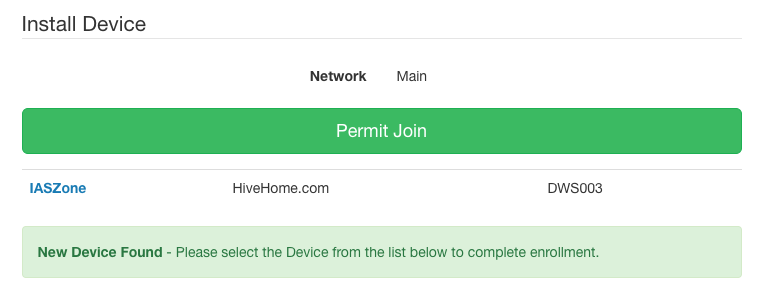

Within a few moments of resetting the plug the Control system will discover the Door Sensor and display a screen similar to the following :
Click the "IASZone" link to continue.
Load the Hive Door Sensor Profile

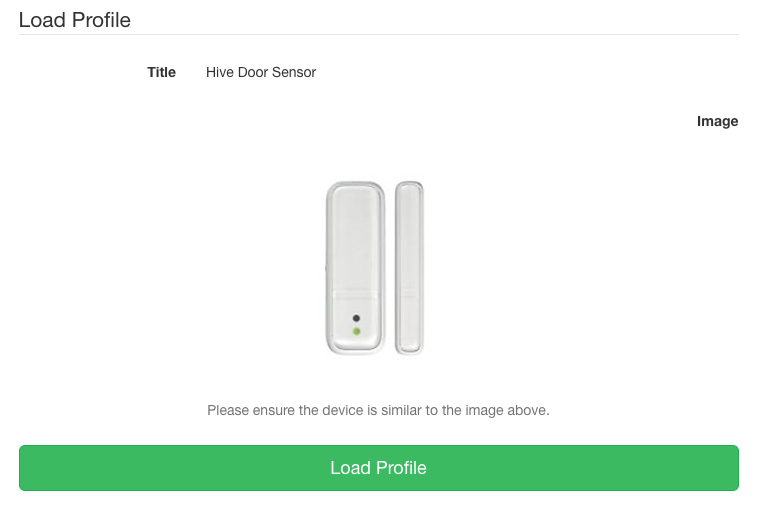

Once the Control System has discovered the Hive Door Sensor, it will load the device profile. A screen similar to the follow will be rendered
Click "Load Profile" to continue. The control system will now start to configure the Door Sensor based on the profile information.
Set Hive Door Sensor Location Information

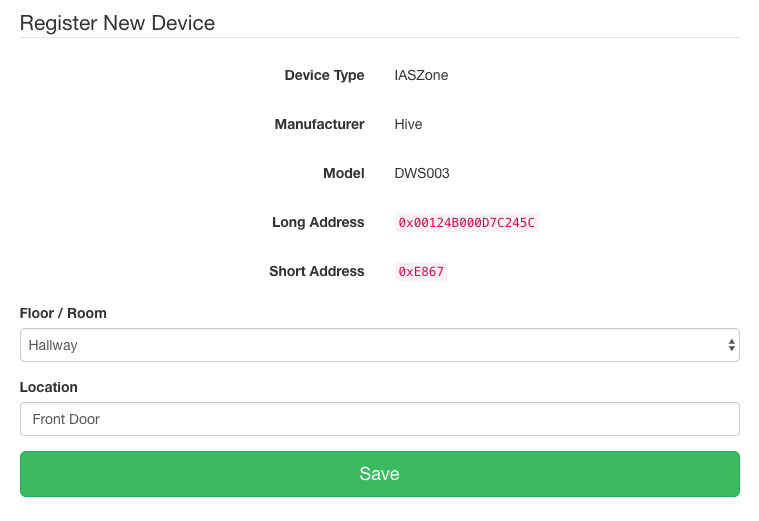

Having loaded the profile, you can now define the Floor / Room and Location information. A screen similar to the following will appear.
Select the room and enter an appropriate location, before clicking the "Save" button.
Use the Hive Door Sensor
Now the Hive Door Sensor has joined the network, loaded it's device profile is configured it can immediately be used in all sorts of Control System actions. Not only to monitor & react to the open / closed state of your door or window, but it can be used to control a rooms temperature or the by measuring light levels, you can also use it to manage the brightness of lights and other Lamps around the home.
